Biliary NAGI Pseudocyst drainage Stent

NAGI™ Stent (Pseudocyst drainage)

Category: Biliary Stents

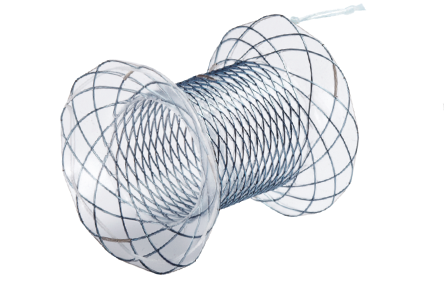

The Niti-S Nagi™ Stent consists of an implantable metallic stent and an introducer system. The stent is made of Nitinol wire. It is a flexible, fine mesh tubular prosthesis which has radiopaque markers on each end and at the center. The Stent is loaded in the introducer system and upon deployment the body of the stent imparts an outward radial force while both heads impart a horizontal inward force, allowing transmural drainage. Niti-S Nagi™ Stent is Fully Silicone Covered and can be removed; (see Warnings).

Details / Features

  • Wide and smooth flare edges
  • Prevent the risk of migration and possibility of stent related luminal damages
  • Available in various diameters (Up to 16mm)
  • Optimize drainage and provide large enough path for following necrosectomy if required
  • Retrieval String for repositioning or easy removal
  • Radiopaque Markers: 3(three) at both ends & 2(two) in the middle


Pancreatic pseudocyst drainage

Clinical Reference

  • Endoscopic “step-up approach” using a dedicated biflanged metal stent reduces the need for direct necrosectomy in walled-off necrosis (with videos)
    by Sundeep Lakhtakia, DM et al [Gastrointest Endosc. 2016 Nov 11. pii: S0016-5107(16)30735-0]
  • Endoscopic therapy for infected pancreatic necrosis using fully covered self-expandable metal stents: combination of transluminal necrosectomy, transluminal and percutaneous drainage
    by D. Albers et al [Z Gastroenterol. 2016 Jan;54(1):26-30]
  • EUS-guided pseudocyst drainage: prospective evaluation of early removal of fully covered self-expandable metal stents with pancreatic ductal stenting in selected patients
    by Vinay Dhir et al [Gastrointest Endosc. 2015 Oct;82(4):650-7; quiz 718.e1-5]
  • Clinical evaluation of endoscopic ultrasonography-guided drainage using a novel flared-type biflanged metal stent for pancreatic fluid collection
    by Shuntaro Mukai et al [Endosc Ultrasound. 2015 Apr-Jun;4(2):120-5]
  • EUS-guided drainage of hepatic abscess and infected biloma using short and long metal stents (with videos)
    by Ryosuke Tonozuka, MD et al [Gastrointest Endosc. 2015;81(6):1463-9]
  • First report of endoscopic ultrasound-guided cholecystogastrostomy with a Nagi covered metal stent for palliation of jaundice in extrahepatic biliary obstruction
    by Praveer Rai et al [Endoscopy. 2014;46 Suppl 1 UCTN:E334-5]
  • Preliminary report on a new, fully covered, metal stent designed for the treatment of pancreatic fluid collections
    by Natsuyo Yamamoto, MD, PhD et al [Gastrointest Endosc. 2013 May;77(5):809-14]
  • New fully-covered self-expandable metal stent for endoscopic ultrasonography-guided intervention in infectious walled-off pancreatic necrosis (with video)
    by Takao Itoi et al [J Hepatobiliary Pancreat Sci. 2013 Mar;20(3):403-6]
  • Treatment of infected pancreatic pseudocysts using a novel, dedicated covered self-expandable metal stent (CSEMS) with an effective antimigration system
    by I. Tarantino et al [Endoscopy. 2012;44 Suppl 2 UCTN:E147-8]
